When it comes to efficient heat transfer in industrial applications, the shell and tube heat exchanger stands out as one of the most commonly used and reliable designs. But how do these systems work, and what makes them so beneficial for a wide variety of industries? In this post, we’ll break down the working principle, design, and advantages of shell and tube heat exchangers to give you a better understanding of their significance.

What is a Shell and Tube Heat Exchanger?

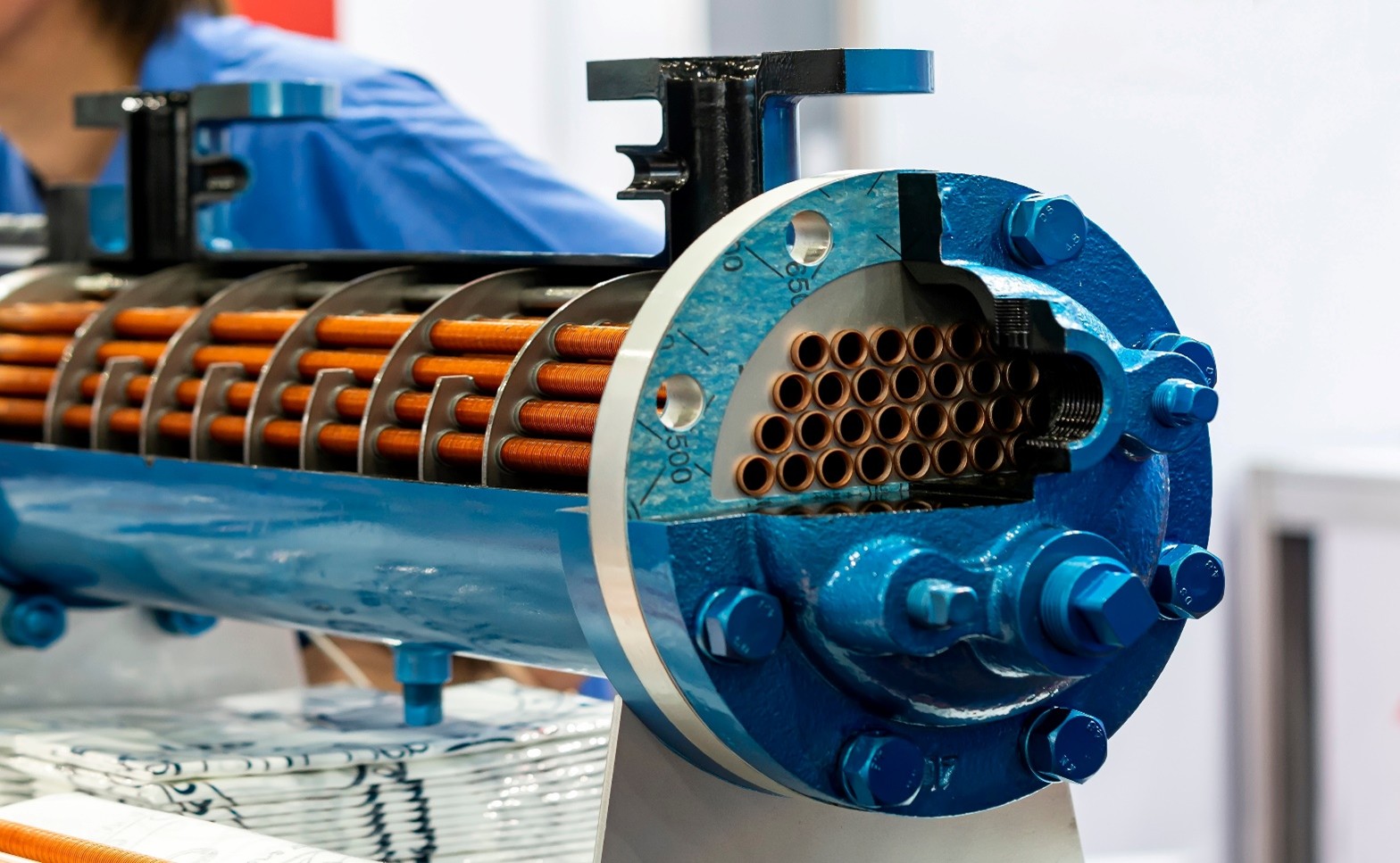

A shell and tube heat exchanger consists of a series of tubes housed within a cylindrical shell. One fluid flows through the tubes, while another flows over the tubes within the shell, allowing heat exchange between the two fluids without mixing. This design is particularly effective for applications requiring high-pressure and high-temperature operations. ​

How Do Shell and Tube Heat Exchangers Work?

The working mechanism of a shell and tube heat exchanger is based on the principle of heat conduction. Here's how it works:

Hot Fluid Flow: The hot fluid enters one set of tubes (known as the tube bundle) and flows through them, transferring heat to the walls of the tubes.

Cold Fluid Flow: Simultaneously, a cold fluid is passed through the outer shell. As the cold fluid flows around the tubes, it absorbs the heat transferred through the tube walls, causing the cold fluid to heat up.

Heat Transfer: This continuous exchange ensures that heat flows from the hot fluid to the cold fluid, facilitating efficient thermal exchange while keeping the fluids physically separate.

ZILEX's Approach to Shell and Tube Heat Exchangers

ZILEX simplifies the design and selection process for shell and tube heat exchangers through its user-friendly online platform. The platform offers features such as quick generation of custom proposals, including datasheets, prices, delivery times, and 3D models, all without requiring extensive technical knowledge. This approach streamlines the process, making it accessible and efficient for users. ​

Design and Construction

A typical shell and tube heat exchanger consists of the following components:

• Shell: The outer casing that holds the tube bundle and directs the flow of the cold fluid around the tubes.
• Tube Bundle: A series of tubes arranged inside the shell, where the hot fluid flows through.
• Baffles: These are placed inside the shell to direct the flow of the cold fluid, ensuring that it moves efficiently around the tubes for optimal heat transfer.
• Tube Sheets: These are used to seal the ends of the tube bundle and allow the fluids to flow in separate paths.

Benefits of Shell and Tube Heat Exchangers

1. High Thermal Efficiency: Due to the large surface area provided by the tubes and the efficient fluid flow design, shell and tube heat exchangers offer excellent heat transfer capabilities. This makes them suitable for applications that require high efficiency, such as power plants, chemical processing, and oil refineries.
2. Versatility: Shell and tube heat exchangers can handle a wide range of fluids and temperatures, making them versatile for various applications, from industrial processes to HVAC systems.
3. Durability: The robust construction of shell and tube heat exchangers allows them to withstand high pressures and temperatures, ensuring long-term reliability and durability even under demanding conditions.
4. Compact Design: Despite their high thermal efficiency, shell and tube heat exchangers have a compact design that makes them ideal for use in space-constrained environments.
5. Customizability: These heat exchangers can be designed to meet specific needs, including customization of tube diameter, material, length, and arrangement to optimize heat transfer based on the application.
6. Maintenance-Friendly: Shell and tube heat exchangers are relatively easy to maintain, especially because the tube bundle can be cleaned or replaced without dismantling the entire unit. This reduces downtime and maintenance costs.

Conclusion

In summary, shell and tube heat exchangers are indispensable components in industrial heat transfer systems. Their reliable design, versatility, and efficiency make them ideal for a wide range of applications across industries. Whether in power generation, chemical processing, or HVAC systems, their ability to transfer heat effectively and efficiently ensures that they continue to be a preferred choice in many engineering solutions.

For those looking for tailored heat exchanger solutions, including shell and tube systems, consulting with experts like ZILEX can provide custom-designed, efficient, and sustainable solutions for various industrial needs.
